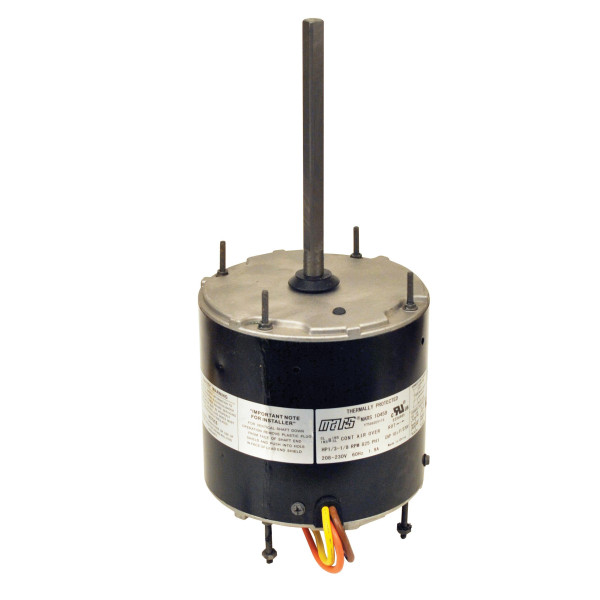

MARS 10468 Outdoor Condenser Fan Motor Multi-Horsepower 1/5 -1/2 HP 1075rpm 208-230V/60Hz/1Ph 6poles 1shaft TEAO Enclosure 2speed 5.6diameter Reversible 10mfd/12.5mfd/370VAC Run Capacitor
SKU
G10468
MARS 10468 Outdoor Condenser Fan Motor Multi-Horsepower 1/5 -1/2 HP 1075rpm 208-230V/60Hz/1Ph 6poles 1shaft TEAO Enclosure 2speed 5.6diameter Reversible 10mfd/12.5mfd/370VAC Run Capacitor
MARS all angle outdoor condenser fan motors are designed for either shaft-up or shaft-down applications. End shields are enclosed for weather protection.
A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat pump applications
All angle. Rheem mounting holes w/screws installed. Water slinger on shaft
Thru bolt or band mounting. Capacitor requirement noted on motor label. Double full flatted shaft
Class B insulation. Thermal overload protected. Fan duty, continuous, air over. Totally enclosed. 36 inch leads
Volume : 0.5 FTQ
Weight : 19 LBR
Model : 10468
UPC-EAN : 685744104681
MARS all angle outdoor condenser fan motors are designed for either shaft-up or shaft-down applications. End shields are enclosed for weather protection.
A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat pump applications
All angle. Rheem mounting holes w/screws installed. Water slinger on shaft
Thru bolt or band mounting. Capacitor requirement noted on motor label. Double full flatted shaft
Class B insulation. Thermal overload protected. Fan duty, continuous, air over. Totally enclosed. 36 inch leads
Volume : 0.5 FTQ
Weight : 19 LBR
Model : 10468
UPC-EAN : 685744104681
Condenser fan motor for Air conditioning outside unit
This product replaces original part numbers and models not limited to:
FD6000, 5461, 3464, X073, 01-0699, R43601, P257-E5461, WG840464, S1-FHM3464, 22468
G10468
New
Data sheet
- Product Characteristic
- MARS all angle outdoor condenser fan motors are designed for either shaft-up or shaft-down applications. End shields are enclosed for weather protection.
A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat pump applications
All angle. Rheem mounting holes w/screws installed. Water slinger on shaft
Thru bolt or band mounting. Capacitor requirement noted on motor label. Double full flatted shaft
Class B insulation. Thermal overload protected. Fan duty, continuous, air over. Totally enclosed. 36 inch leads - Model
- 10468
- UPC-EAN
- 685744104681
- Sales Unit
- EA
- Origin
- China
- US Tariff Code
- 8501.20.6000
- Base Unit
- EA
- Dimensions
- 7.5 x 6.8 x 14.9
Specific References
- UPC
- 685744104681
- MPN
- 10468
