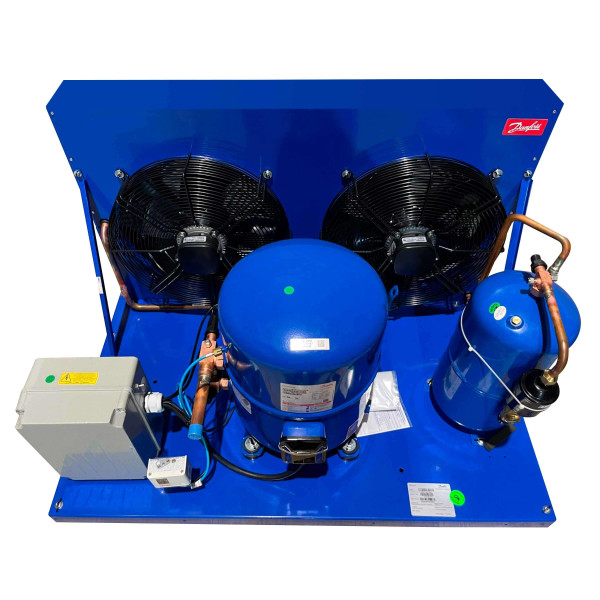

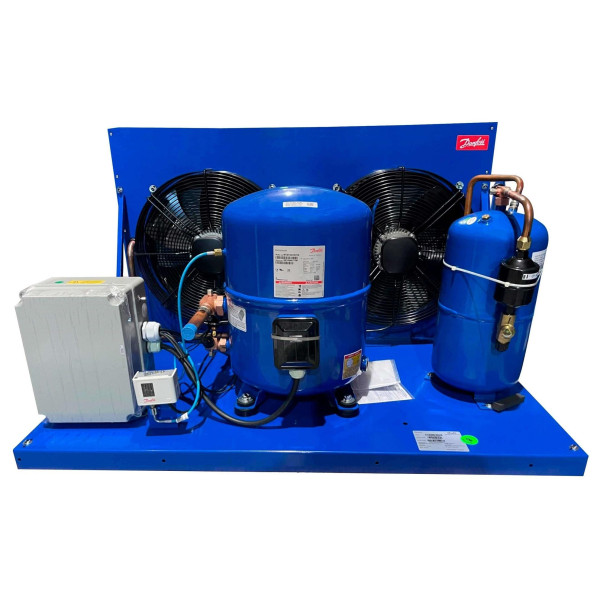

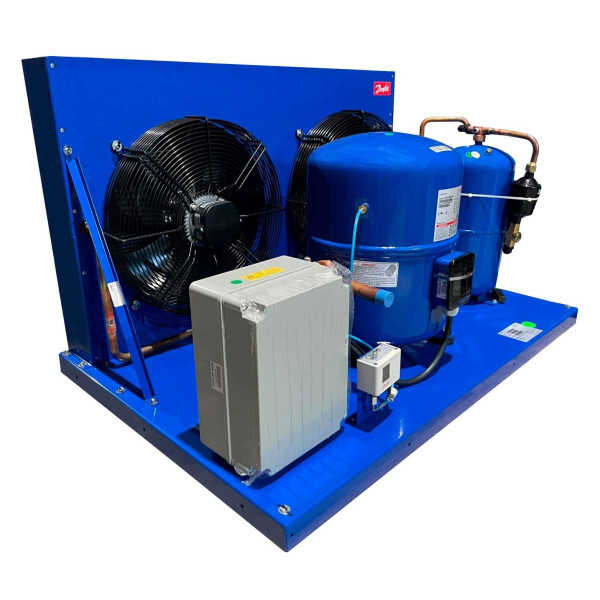

Danfoss OP-HGZ064D39N Condensing Unit Microchannel Coil 5.5HP MBP 230V/1Ph/60Hz R134a,R404A,R448A,R449A,R452A,R513A POE Oil 2 Fans with Reciprocating Compressor MTZ064-1 115N0654
SKU
G115F0654
Danfoss OP-HGZ064D39N Condensing Unit Microchannel Coil 5.5HP MBP 230V/1Ph/60Hz R134a,R404A,R448A,R449A,R452A,R513A POE Oil 2 Fans with Reciprocating Compressor MTZ064-1 115N0654
Condensing Unit for Medium Temperature Refrigeration Applications such as Supermarkets, Restaurants, Walking Coolers, Cold Rooms, Food Processing Facilities and other Commercial Applications
This model includes: Receiver, Filter Drier, Sight Glass, Low pressure Switch KP1, High Pressure Cartdrige, Cranckase Heater, Rotolock Valves
Rated Capacity for Medium Back Pressure R404A 37,047 BTU/h at evaportaing Temperature 14F and Ambient Temperature 95F with Superheat 18k and Subcooling 3K. Check Chart for more Information
This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload

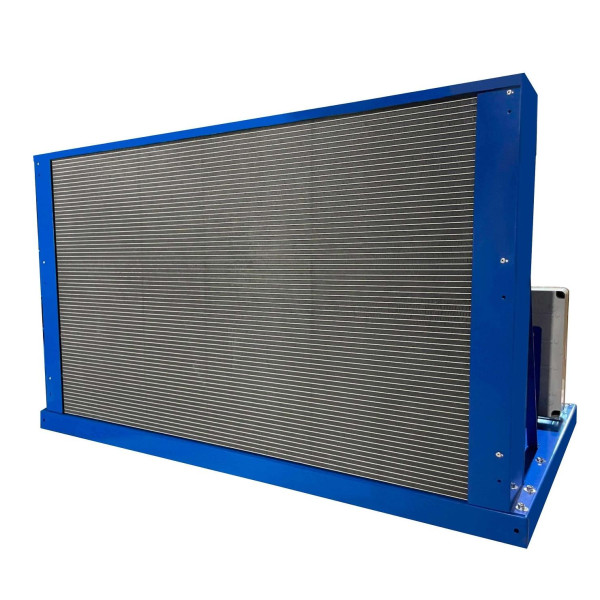

The D39 Models Do Not Included Outdoor Housing. Microchanel Aluminum Condenser. Pipe Connection Sizes 1-1/8 Suction and 1/2 Liquid Side. 2 Axial Fan 17-3/4 in
Weight : 315.27 LBR
Volume : 34.5 FTQ
Model : HGZ064D39N
UPC-EAN : 5702424494001
Condensing Unit for Medium Temperature Refrigeration Applications such as Supermarkets, Restaurants, Walking Coolers, Cold Rooms, Food Processing Facilities and other Commercial Applications
This model includes: Receiver, Filter Drier, Sight Glass, Low pressure Switch KP1, High Pressure Cartdrige, Cranckase Heater, Rotolock Valves
Rated Capacity for Medium Back Pressure R404A 37,047 BTU/h at evaportaing Temperature 14F and Ambient Temperature 95F with Superheat 18k and Subcooling 3K. Check Chart for more Information
This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload
The D39 Models Do Not Included Outdoor Housing. Microchanel Aluminum Condenser. Pipe Connection Sizes 1-1/8 Suction and 1/2 Liquid Side. 2 Axial Fan 17-3/4 in
Weight : 315.27 LBR
Volume : 34.5 FTQ
Model : HGZ064D39N
UPC-EAN : 5702424494001
Danfoss OP-HGZ064D32N Condensing Unit Medium Temp for Coolers
This item will replace various brands and models including but not limited to:
Replaces:HGM064E32N, HGZ064E32N, HGM064E32Q, HGM064D32N, 114N3289,HGZ064D32N, 114N3296, 115F0654
G115F0654
New
Data sheet
- Product Characteristic
- Condensing Unit for Medium Temperature Refrigeration Applications such as Supermarkets, Restaurants, Walking Coolers, Cold Rooms, Food Processing Facilities and other Commercial Applications
This model includes: Receiver, Filter Drier, Sight Glass, Low pressure Switch KP1, High Pressure Cartdrige, Cranckase Heater, Rotolock Valves
Rated Capacity for Medium Back Pressure R404A 37,047 BTU/h at evaportaing Temperature 14F and Ambient Temperature 95F with Superheat 18k and Subcooling 3K. Check Chart for more Information
This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload
The D39 Models Do Not Included Outdoor Housing. Microchanel Aluminum Condenser. Pipe Connection Sizes 1-1/8 Suction and 1/2 Liquid Side. 2 Axial Fan 17-3/4 in - Weigth
- 315.27 LBR
- Model
- HGZ064D39N
- UPC-EAN
- 5702424494001
- Sales Unit
- EA
- Origin
- Mexico
- US Tariff Code
- 8418.99.8015
- Base Unit
- EA
- Dimensions
- 28.15 x 47.24 x 31.5
Specific References
- EAN13
- 5702424494001
- MPN
- HGZ064D39N
