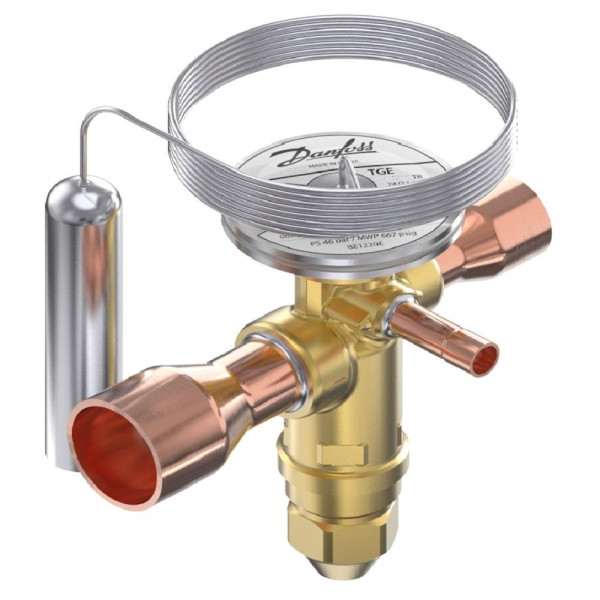

Danfoss 067N5169 25TR Thermostatic expansion valve, TGE, R134a,R513A, 1-1/8x1 3/8 in Solder, ODF, 1/4 in Externally equalized, Bi-flow, -40 to 50 F, replaces 067N5189

Tags TXV Expansion element orifice refrigeration air conditioning

Danfoss 067N5169 25TR Thermostatic expansion valve, TGE, R134a,R513A, 1-1/8x1 3/8 in Solder, ODF, 1/4 in Externally equalized, Bi-flow, -40 to 50 F, replaces 067N5189
Applications: Water Chillers. Bus A/C. Rooftop Units. Heat Pumps. Refrigerated Containers. Other A/C and Refrigeration Systems
Features: Balance port design. Biflow with expansion in both directions. Low hysteresis. Long lifetime for heat pump applications. Laser welded, stainless steel power element, capillary tube, and bulb
Straightway flow. Adjustable superheat setting. UL Certified
Maximum Operating Temperature +210F
Replaces: OJE-23, TRAE-22M, 067N5169

Weight : 2.4 LBR
Volume : 0.04196506 FTQ
Model : 067N5169
UPC-EAN : 5702428169394

Reference G067N5169

Condition New

Data sheet

Product Characteristic: Applications: Water Chillers. Bus A/C. Rooftop Units. Heat Pumps. Refrigerated Containers. Other A/C and Refrigeration Systems
Features: Balance port design. Biflow with expansion in both directions. Low hysteresis. Long lifetime for heat pump applications. Laser welded, stainless steel power element, capillary tube, and bulb
Straightway flow. Adjustable superheat setting. UL Certified
Maximum Operating Temperature +210F

Replaces: OJE-23, TRAE-22M, 067N5169
Model: 067N5169
UPC-EAN: 5702428169394
Sales Unit: EA
Origin: China
US Tariff Code: 8481.80.9050
Base Unit: EA
Dimensions: 4.25 x 3.25 x 5.25
