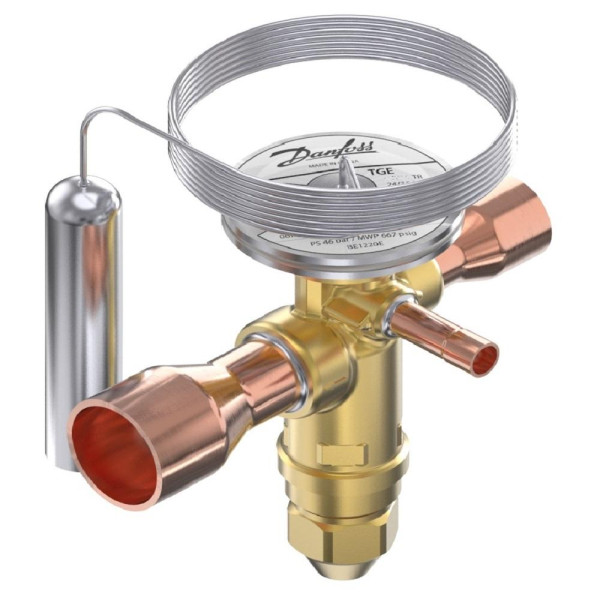

Danfoss 067N9215 31TR Thermostatic expansion valve, TGE, R410A, 7/8x1 3/8 in Solder, ODF, 1/4 in Externally equalized, Bi-flow, -22 to 60 F

Tags TXV Expansion element orifice refrigeration air conditioning

Danfoss 067N9215 31TR Thermostatic expansion valve, TGE, R410A, 7/8x1 3/8 in Solder, ODF, 1/4 in Externally equalized, Bi-flow, -22 to 60 F
Applications: Water Chillers. Bus A/C. Rooftop Units. Heat Pumps. Refrigerated Containers. Other A/C and Refrigeration Systems
Features: Balance port design. Biflow with expansion in both directions. Low hysteresis. Long lifetime for heat pump applications. Laser welded, stainless steel power element, capillary tube, and bulb
Straightway flow. Adjustable superheat setting. UL Certified
Maximum Operating Temperature +300F
Replaces: OZE-25, 067N9215

Weight : 2.6 LBR
Volume : 0.04196506 FTQ
Model : 067N9215
UPC-EAN : 5702428470704

Reference G067N9215

Condition New

Data sheet

Product Characteristic: Applications: Water Chillers. Bus A/C. Rooftop Units. Heat Pumps. Refrigerated Containers. Other A/C and Refrigeration Systems
Features: Balance port design. Biflow with expansion in both directions. Low hysteresis. Long lifetime for heat pump applications. Laser welded, stainless steel power element, capillary tube, and bulb
Straightway flow. Adjustable superheat setting. UL Certified
Maximum Operating Temperature +300F

Replaces: OZE-25, 067N9215
Model: 067N9215
UPC-EAN: 5702428470704
Sales Unit: EA
Origin: China
US Tariff Code: 8481.80.9050
Base Unit: EA
Dimensions: 4.25 x 3.25 x 5.25
