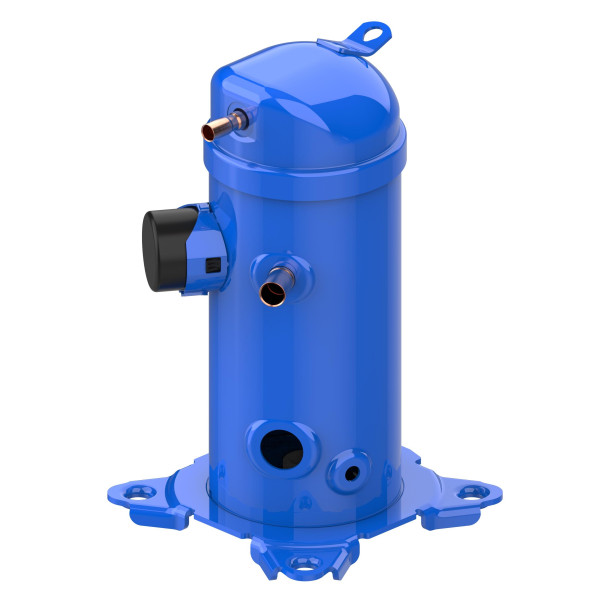

Danfoss HLP072T2LC6 6 tons 72,000 btu/h R407C Scroll compressor for Air conditioning 200-220/3/50 208-230/3/60 (V/Ph/Hz) Discharge 1/2 in, Suction 7/8 in, ODF, PVE Oil 121L2903

Tags AC Compressor Condenser Compressor Aircon Compressor Oudoor Unit compressor

Danfoss HLP072T2LC6 6 tons 72,000 btu/h R407C Scroll compressor for Air conditioning 200-220/3/50 208-230/3/60 (V/Ph/Hz) Discharge 1/2 in, Suction 7/8 in, ODF, PVE Oil 121L2903
Use: Scroll Compressor Replacement for Air Conditioning Units
Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations
Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company
Aditional Details: 1.57L PVE Oil Charge, Internal overload protector

Weight : 90 LBR
Volume : 1.384 FTQ
Model : HLP072T2LC6
UPC-EAN : 5702424061302

Reference G0315.HLP072T2

Condition New

Data sheet

Product Characteristic: Use: Scroll Compressor Replacement for Air Conditioning Units
Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations
Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company
Aditional Details: 1.57L PVE Oil Charge, Internal overload protector
Model: HLP072T2LC6
UPC-EAN: 5702424061302
Sales Unit: EA
Origin: USA
US Tariff Code: 8414.30.8070
Base Unit: EA
Dimensions: 11 x 20
