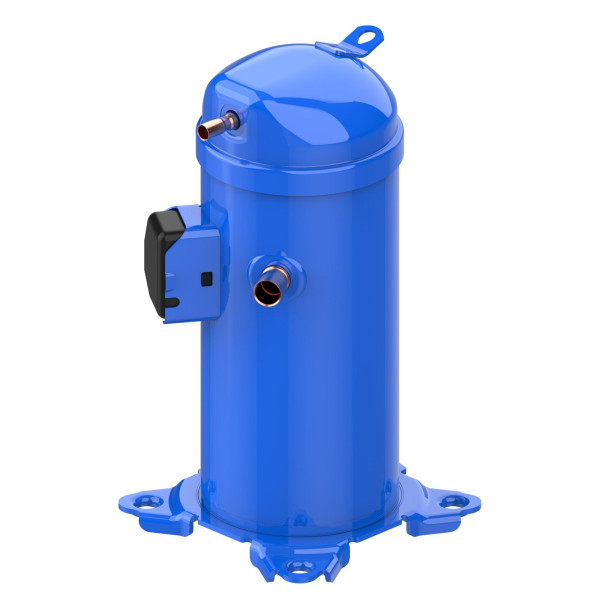

Danfoss HLH061T4LC6 5 tons 61, 000 btu/h R410A Scroll Compressor for Air conditioning 380-415/3/50, 460/3/60 V/Ph/Hz Discharge 1/2 in, Suction 7/8 in, ODF, PVE Oil 121L2052, 121L2049, 121L8475

Tags AC Compressor Condenser Compressor Aircon Compressor Oudoor Unit compressor

Danfoss HLH061T4LC6 5 tons 61, 000 btu/h R410A Scroll Compressor for Air conditioning 380-415/3/50, 460/3/60 V/Ph/Hz Discharge 1/2 in, Suction 7/8 in, ODF, PVE Oil 121L2052, 121L2049, 121L8475
Use: Scroll Compressor Replacement for Air Conditioning Units
Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations
Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company
Aditional Details: 1.57L PVE Oil Charge, Internal overload protector
Replaces: 120U2052, ZP61KCE-TFD, HLH060U4LP6, 121L8476

Weight : 95.52 LBR
Volume : 6.92 FTQ
Model : HLH061T4LC6
UPC-EAN : 5702424206079

Reference G0315.061T44

Condition New

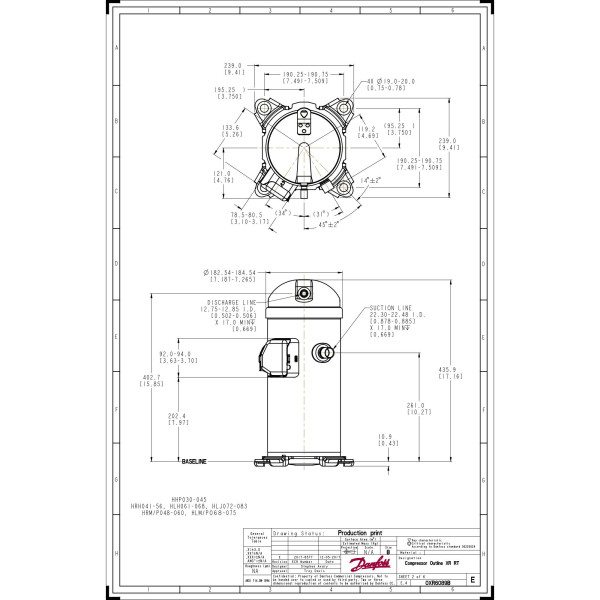

Data sheet

Product Characteristic: Use: Scroll Compressor Replacement for Air Conditioning Units

Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations

Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company

Aditional Details: 1.57L PVE Oil Charge, Internal overload protector

Replaces: 120U2052, ZP61KCE-TFD
Weigth: 95.52 LBR
Volume: 6.92 FTQ
Model: HLH061T4LC6
UPC-EAN: 5702424206079
Sales Unit: EA
Origin: USA
US Tariff Code: 8414.30.8070
Base Unit: EA
Dimensions: 23 x 20 x 26
