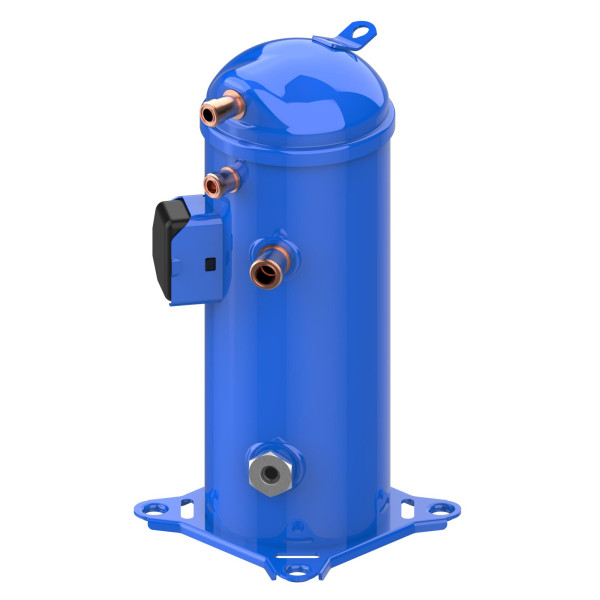

Danfoss LLZ013T2LQ9C 4 HP LBP Refrigeration Scroll Compressor 208-230/3/60 (V/Ph/Hz) R404A, R507, R452A, R448A, R449A, Rotolock Connections 121L9544, 121L85445, 121L9519, 121L9518, 121L9545, 121L9053
SKU
G0315.LLZ013T2
Danfoss LLZ013T2LQ9C 4 HP LBP Refrigeration Scroll Compressor 208-230/3/60 (V/Ph/Hz) R404A, R507, R452A, R448A, R449A, Rotolock Connections 121L9544, 121L85445, 121L9519, 121L9518, 121L9545, 121L9053
Use: Designed for Commercial Refrigeration Applications
Internal Overload Protector. Precharged 215PZ POE Oil. Screw connectors 10-32 UNF x 9.5
LLZ scroll compressors come equipped with a threaded oil sight glass with 1-1/8in 18 UNEF connection
The oil fill and drain connection and gauge port is a 1/4in male flare connector incorporating a schrader valve
Multiple Refrigerant Applications. Replaces various models 121L9518, 121L9519
Weight : 106.69 LBR
Model : 121L9544
UPC-EAN : 5702424540760
Use: Designed for Commercial Refrigeration Applications
Internal Overload Protector. Precharged 215PZ POE Oil. Screw connectors 10-32 UNF x 9.5
LLZ scroll compressors come equipped with a threaded oil sight glass with 1-1/8in 18 UNEF connection
The oil fill and drain connection and gauge port is a 1/4in male flare connector incorporating a schrader valve
Multiple Refrigerant Applications. Replaces various models 121L9518, 121L9519
Weight : 106.69 LBR
Model : 121L9544
UPC-EAN : 5702424540760
G0315.LLZ013T2
New

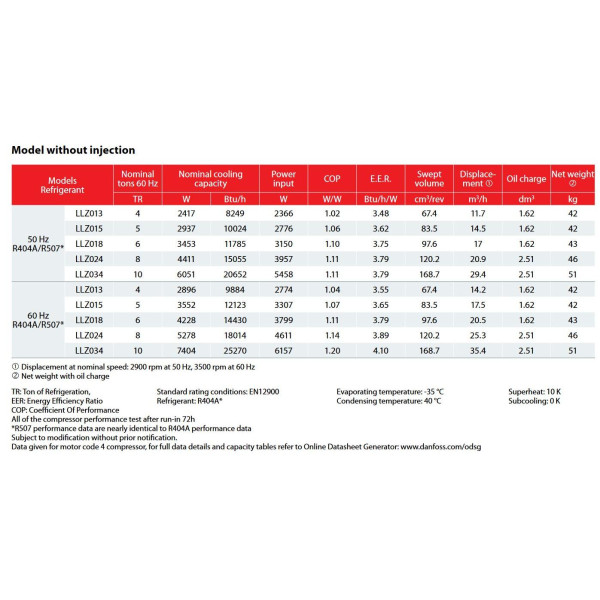

Data sheet
- Product Characteristic
- Use: Designed for Commercial Refrigeration Applications
Internal Overload Protector. Precharged 215PZ POE Oil. Screw connectors 10-32 UNF x 9.5
LLZ scroll compressors come equipped with a threaded oil sight glass with 1-1/8in 18 UNEF connection
The oil fill and drain connection and gauge port is a 1/4in male flare connector incorporating a schrader valve
Multiple Refrigerant Applications. Replaces various models 121L9518, 121L9519 - Model
- 121L9544
- UPC-EAN
- 5702424540760
- Sales Unit
- EA
- Origin
- USA
- US Tariff Code
- 8414.30.4070
- Base Unit
- EA
Specific References
- EAN13
- 5702424540760
- MPN
- 121L9544
