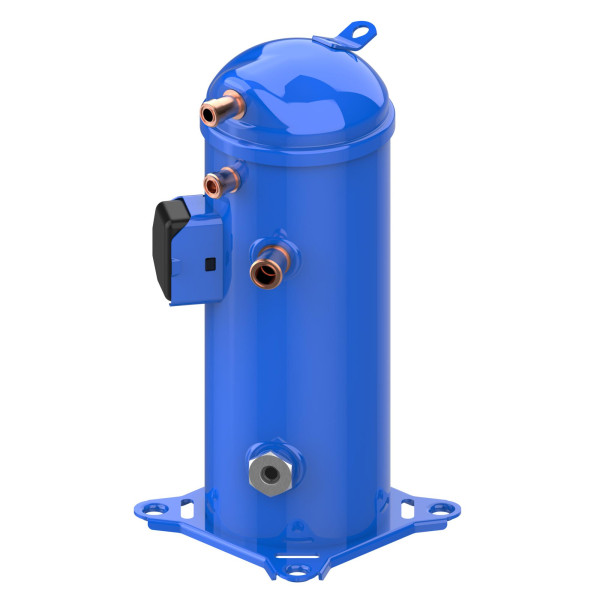

Danfoss LLZ015T2LQ9C 5 HP LBP Refrigeration Scroll Compressor 208-230/3/60 (V/Ph/Hz) R404A, R507, R452A, R448A, R449A, Rotolock Connections, 121L9546, 121L9547, 121L9515, 121L9055
SKU
G0315.LLZ015T2
Danfoss LLZ015T2LQ9C 5 HP LBP Refrigeration Scroll Compressor 208-230/3/60 (V/Ph/Hz) R404A, R507, R452A, R448A, R449A, Rotolock Connections, 121L9546, 121L9547, 121L9515, 121L9055
Use: Designed for Commercial Refrigeration Applications. May Replace ZF15K4E
Internal Overload Protector. Precharged 215PZ POE Oil. Screw connectors 10-32 UNF x 9.5
LLZ scroll compressors come equipped with a threaded oil sight glass with 1-1/8in 18 UNEF connection
The oil fill and drain connection and gauge port is a 1/4in male flare connector incorporating a schrader valve
Multiple Refrigerant Applications. Replaces various models 121L9518, 121L9519
Weight : 106.69 LBR
Model : 121L9546
UPC-EAN : 5702424540753
Use: Designed for Commercial Refrigeration Applications. May Replace ZF15K4E
Internal Overload Protector. Precharged 215PZ POE Oil. Screw connectors 10-32 UNF x 9.5
LLZ scroll compressors come equipped with a threaded oil sight glass with 1-1/8in 18 UNEF connection
The oil fill and drain connection and gauge port is a 1/4in male flare connector incorporating a schrader valve
Multiple Refrigerant Applications. Replaces various models 121L9518, 121L9519
Weight : 106.69 LBR
Model : 121L9546
UPC-EAN : 5702424540753
G0315.LLZ015T2
New

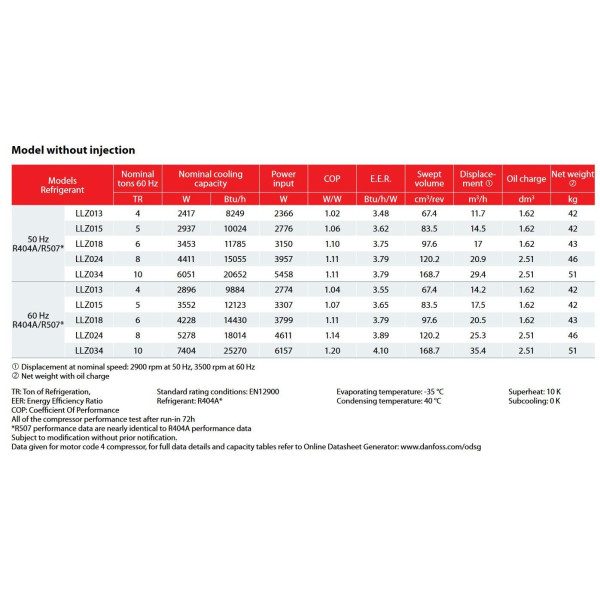

Data sheet
- Product Characteristic
Use: Designed for Commercial Refrigeration Applications. May Replace ZF15K4E
Internal Overload Protector. Precharged 215PZ POE Oil. Screw connectors 10-32 UNF x 9.5
LLZ scroll compressors come equipped with a threaded oil sight glass with 1-1/8in 18 UNEF connection
The oil fill and drain connection and gauge port is a 1/4in male flare connector incorporating a schrader valve
Multiple Refrigerant Applications. Replaces various models 121L9518, 121L9519- Model
- 121L9546
- UPC-EAN
- 5702424540753
- Sales Unit
- EA
- Origin
- USA
- US Tariff Code
- 8414.30.4070
- Base Unit
- EA
Specific References
- EAN13
- 5702424540753
- MPN
- 121L9546
