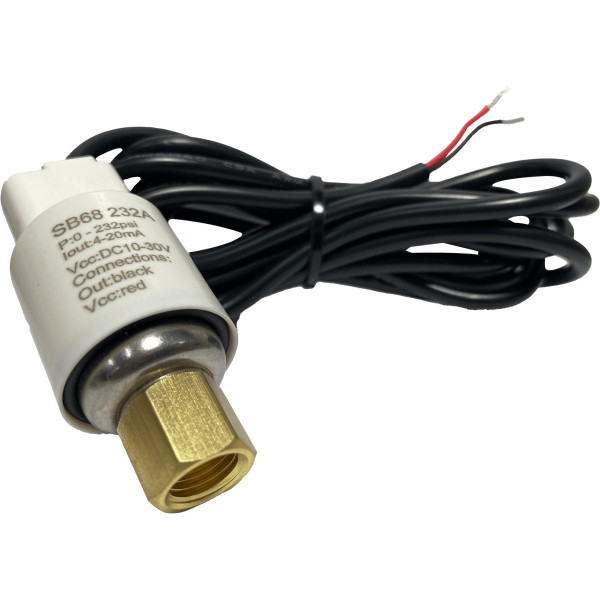

Full Gauge SB68-232A Pressure Transducer, 1/4 in SAE Male, 0-232 psi (0-16 bar), Supply 0.5-4.5 VDC, Output 4-20mA, Temp Range -40 to 176 F (-40 to 80 C)
SKU
GSB68232A
Full Gauge SB68-232A Pressure Transducer, 1/4 in SAE Male, 0-232 psi (0-16 bar), Supply 0.5-4.5 VDC, Output 4-20mA, Temp Range -40 to 176 F (-40 to 80 C)
Output Signal: 4 to 20mA (2-Wires)
Pressure Port: 1/4 in SAE male, 7/16 in -20 UNF
Cable Length: 2 m
Supply: 0.5 to 4.5 VDC
Compatible With: VX-1025E plus, VX-1050E plus, RCK-862 plus, RCK-602 plus, PCT-100E, PCT-120E plus, PCT-410E plus, PCT-3001 plus, MOD-64, MOD-142
Weight : 0.55 LBR
Volume : 0.0179 FTQ
Model : SB68-232A
UPC-EAN : 7899129141472
Output Signal: 4 to 20mA (2-Wires)
Pressure Port: 1/4 in SAE male, 7/16 in -20 UNF
Cable Length: 2 m
Supply: 0.5 to 4.5 VDC
Compatible With: VX-1025E plus, VX-1050E plus, RCK-862 plus, RCK-602 plus, PCT-100E, PCT-120E plus, PCT-410E plus, PCT-3001 plus, MOD-64, MOD-142
Weight : 0.55 LBR
Volume : 0.0179 FTQ
Model : SB68-232A
UPC-EAN : 7899129141472
GSB68232A
New
Data sheet
- Product Characteristic
Output Signal: 4 to 20mA (2-Wires)
Pressure Port: 1/4 in SAE male, 7/16 in -20 UNF
Cable Length: 2 m
Supply: 0.5 to 4.5 VDC
Compatible With: VX-1025E plus, VX-1050E plus, RCK-862 plus, RCK-602 plus, PCT-100E, PCT-120E plus, PCT-410E plus, PCT-3001 plus, MOD-64, MOD-142- Volume
- 0.0179 FTQ
- Model
- SB68-232A
- UPC-EAN
- 7899129141472
- Sales Unit
- EA
- Origin
- Brazil
- US Tariff Code
- 9032.90.4100
- Base Unit
- EA
- Dimensions
- 3.25 x 2.25 x 4.25
Specific References
- EAN13
- 7899129141472
- MPN
- SB68-232A
