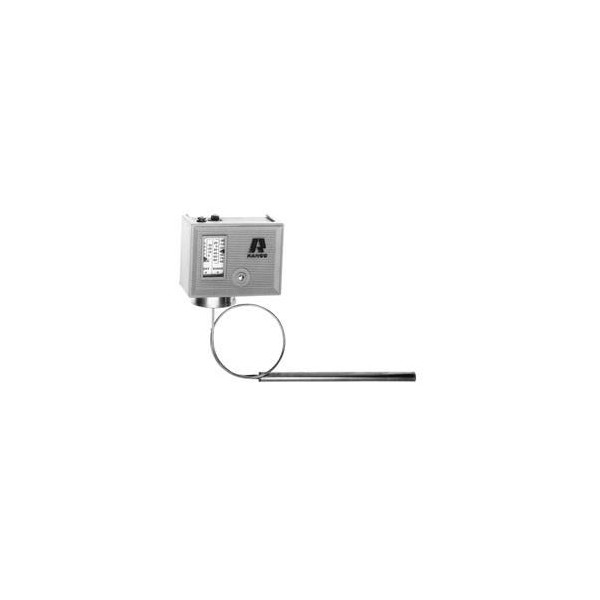

Ranco thermostat O10-1408 low temperature thermostat with -15F to 40F range, adjustable differential, 72 in capillary and remote bulb.

Ranco thermostat O10-1408 low temperature thermostat with -15F to 40F range, adjustable differential, 72 in capillary and remote bulb.
Maximum Adjustment Accuracy With 7 Revolution Range Adjustment Screws Nema 1 Enclosure With Non-Conductive Cover Universal Mounting And Compact Design Laser-Welded Bellows For Extended Life Wide Range Adjustable Differential Series
Application Low Temperature Controls Temperature Range -15f To 40f
Switch Spst-Opens Low Capillary Length 72inch W/ Remote Bulb Differential 3f To 20f Comments Differential At Low End Of Range Is 6 To 25

Weight : 1.14 LBR
Volume : 0.04277208 FTQ
Model : O10-1408
UPC-EAN : 00686608002518

Reference G2203.1408

Condition New

Data sheet

Product Characteristic: Maximum Adjustment Accuracy With 7 Revolution Range Adjustment Screws Nema 1 Enclosure With Non-Conductive Cover Universal Mounting And Compact Design Laser-Welded Bellows For Extended Life Wide Range Adjustable Differential Series
Application Low Temperature Controls Temperature Range -15f To 40f
Switch Spst-Opens Low Capillary Length 72inch W/ Remote Bulb Differential 3f To 20f Comments Differential At Low End Of Range Is 6 To 25
Volume: 0.04277208 FTQ
Model: O10-1408
UPC-EAN: 00686608002518
Sales Unit: EA
Origin: Mexico
US Tariff Code: 9032.20.0000
Base Unit: EA
Dimensions: 2.625 x 4.25 x 6.625
